Kubota logo

Engine D905-E2

Fuel efficent
EPA/CARB Tier 2
Easy maintenance
  • Model:
  • Type:
  • Cylinders:
  • Bore and stroke:
  • Displacement:
  • Aspiration:
  • Emissions:
  • Rated output:*

  • Maximum torque:*
  • System
  • Dimensions:**
  • Weight:
  • D905-E2
  • Vertical, water cooled
  • 3
  • 72,0 x 73,6 mm
  • 0,898 L
  • Naturally aspirated
  • EPA/CARB Tier 2 level
  • 18,5 kW - 24,8 HP | 3600 rpm
  • 15,5 kW - 20,8 HP | 3000 rpm
  • 54,7 Nm | 2600 rpm
  • Indirect
  • 480 x 396 x 605 mm
  • 93 kg
Kubota D905-E2

*: SAE J1995 gross intermittent
**: Dimensions do not include fan and exhaust treatment unit.

The listed engine specifications are subject to change without notice, engine dimensions and weight are listed in accordance with Kubota's standard specification. The engine series can be produced in different options so the stated specifications may deviate. The photos shown may contain non-standard equipment.

Engine details

The D905-E2 engine from the 05 series is a compact multi-cylinder water-cooled industrial diesel engine which corresponds to the CARB Tier 2 + EU Stage IIIA level emission class. This series of motors has proven to be an excellent choice for a variety of smaller applications ranging from 18.5 kW to 33 kW.
Possilbe configuration D905-E2 with 3000 rpm:
15,5 kW - 20,8 HP | 3000 rpm and 55,8 Nm | 2200 rpm.

Dimensions

Kubota D905-E2 dimensions

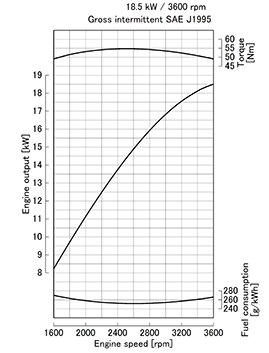

Performance curves

Kubota D905-E2 performance curves

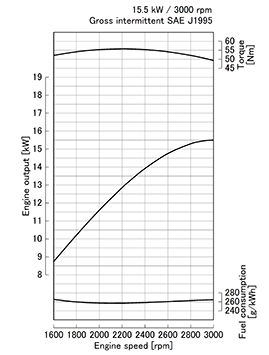

Performance curves at 3000 rpm

Kubota D905-E2 performance curves
