*: SAE J1995 gross intermittent
**: Dimensions do not include fan and exhaust treatment unit.
The listed engine specifications are subject to change without notice, engine dimensions and weight are listed in accordance with Kubota's standard specification. The engine series can be produced in different options so the stated specifications may deviate. The photos shown may contain non-standard equipment.
The D1005-E4 engine is a compact multi-cylinder water-cooled industrial diesel engine that complies with the EU Stage V emission class.
This series of motors has proven to be an excellent choice in this power class to drive a variety of small to medium applications ranging from 18.5 kW to 33 kW.
Possible engine configuration D1005-E4 with 3000 rpm has:

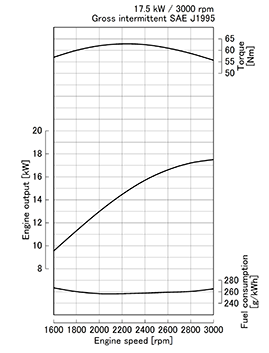

17,5 kW - 23,5 HP | 3000 rpm in 62,8 Nm | 2200 rpm.
The developed original E-TVCS (Three Vortex Combustion System) has
been improved. The airflow, combustion chamber, and piston recess
have been optimized to provide low particulate matter (PM) levels,
matching the stringent level of emission regulation.
Complies with European regulations on the level of exhaust particles:
The 05 Series has variety of accessories available to make machine developers (OEMs) easier and more flexible installation process.
