Kubota logo

Engine WG3800-G-E3

Fuel efficient
Carb Tier 3
Easy maintenance
  • Model:
  • Type:
  • Cylinders:
  • Bore and stroke:
  • Displacement:
  • Aspiration:
  • Aftertreatment:
  • Emissions:
  • Rated output:*
  • Maximum torque:*
  • Dimensions:**
  • Weight:
  • WG3800-G-E3
  • Vertical, water cooled
  • 4
  • 100,0 x 120,0 mm
  • 3,769 L
  • Naturally aspirated
  • Three-way catalyst
  • EPA Tier 2 / CARB tier 3
  • 65,0 kW - 87,1 HP | 2600 rpm
  • 256,0 Nm | 1400 rpm
  • 700 x 597 x 799 mm
  • 288 kg
Kubota WG3E300-G-E3

*: SAE J1995 gross intermittent
**: Dimensions do not include fan and exhaust treatment unit.

The listed engine specifications are subject to change without notice, engine dimensions and weight are listed in accordance with Kubota's standard specification. The engine series can be produced in different options so the stated specifications may deviate. The photos shown may contain non-standard equipment.

Features and benefits

The LSI - Large Spark Ignition series is built on the economical and reliable Super 00 series of diesel engines and offers turbo diesel engine performance. Due to the similar dimensions as the V3800 diesel engine, the installation of the WG3800 engine is quick and easy, the choice of drive allows petrol, gas (LPG and natural gas) or a combination of these fuels.

Emissions

Kubota's WG3800-G engine complies with EPA emission regulations EPA Tier 2 / CARB Tier 3 in EU Stage V.

dimensions

Kubota WG3800-G dimensions

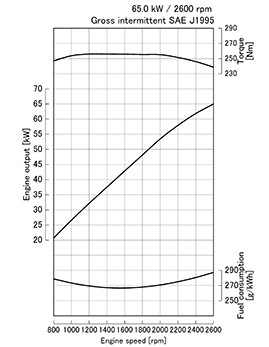

performance curves

Kubota WG3800-G performance curves
