Kubota logo

Engine WG2503-GL-E3

Fuel efficient
Carb Tier 3
Easy maintenance
  • Model:
  • Type:
  • Cylinders:
  • Bore and stroke:
  • Displacement:
  • Aspiration:
  • Aftertreatment:
  • Emissions:
  • Rated output:*
  • Maximum torque:*
  • Dimensions:**
  • Weight:
  • WG2503-G-E3
  • Vertical, water cooled
  • 4
  • 88,0 x 102,4 mm
  • 2,491 L
  • Naturally aspirated
  • Three-way catalyst
  • EPA Tier 2 / CARB tier 3
  • 45,5 kW - 61,0 HP | 2700 rpm
  • 171,0 Nm | 1800 rpm
  • 646 x 509 x 761 mm
  • 197 kg
Kubota WG2503-GL

*: SAE J1995 gross intermittent
**: Dimensions do not include fan and exhaust treatment unit.
LPG - Liquid Petrol Gas: Commercial liquid propane gas only. Equivalent to propane HD-5 of GPA standard.
N - Natural gas: Commercial Compressed Natural Gas only. The performance shown is with Japanese standard CNG.. Heating value: 9699 kcal / m3

The listed engine specifications are subject to change without notice, engine dimensions and weight are listed in accordance with Kubota's standard specification. The engine series can be produced in different options so the stated specifications may deviate. The photos shown may contain non-standard equipment.

Features and benefits

The LSI - Large Spark Ignition series is built on the economical and reliable Super 03 series of diesel engines and offers turbo diesel engine performance. Due to the similar dimensions as the V2403 diesel engine, the installation of the WG2503 engine is quick and easy, the choice of drive allows petrol, gas (LPG and natural gas) or a combination of these fuels.

Emissions

Kubota's WG2503-GL engine complies with emission regulationsEPA Tier 2 / CARB Tier 3 in EU Stage V.

dimenions

Kubota WG2503-GL dimenions

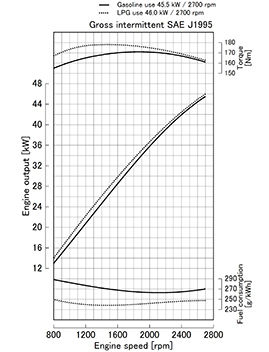

Performance curves

Kubota WG2503-GL Performance curves
