Kubota logo

Engine V3600-E3

Fuel efficent
EU Stage IIIA
Easy maintenance
  • Model:
  • Type:
  • Cylinders:
  • Bore and stroke:
  • Displacement:
  • Aspiration:
  • Emissions:
  • Rated output:*
  • Maximum torque:*
  • System
  • Dimensions:**
  • Weight:
  • V3600-E3
  • Vertical, water cooled
  • 4
  • 98,0 x 120,0 mm
  • 3,620 L
  • Naturally aspirated
  • EU Stage IIIA
  • 49,8 kW - 66,8 HP | 2600 rpm
  • 296,0 Nm | 1600 rpm
  • Indirect
  • 699 x 536 x 741 mm
  • 252 kg

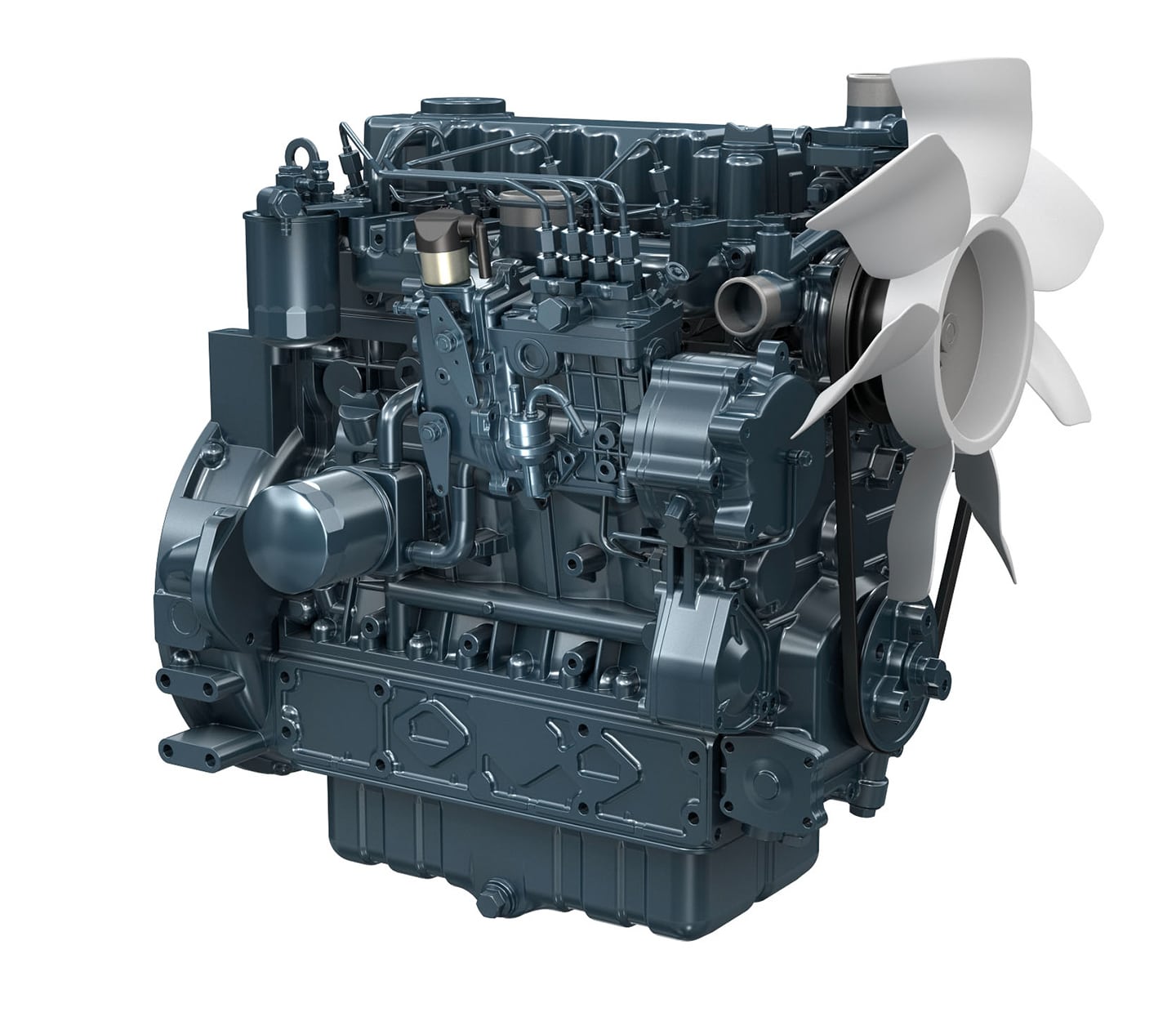

Kubota V3600-E3

*: SAE J1995 gross intermittent
**: Dimensions do not include fan and exhaust treatment unit.

The listed engine specifications are subject to change without notice, engine dimensions and weight are listed in accordance with Kubota's standard specification. The engine series can be produced in different options so the stated specifications may deviate. The photos shown may contain non-standard equipment.

Dimensions

Kubota V3600-E3 dimensions

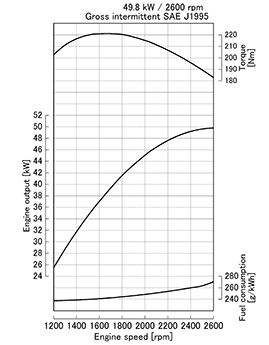

Performance curves

Kubota V3600-E3 performance curves
