Kubota logo

Engine V3600-T-E3

Fuel efficent
EU Stage IIIA
Easy maintenance
  • Model:
  • Type:
  • Cylinders:
  • Bore and stroke:
  • Displacement:
  • Aspiration:
  • Emissions:
  • Rated output:*
  • Maximum torque:*
  • System
  • Dimensions:**
  • Weight:
  • V3600-T-E3
  • Vertical, water cooled
  • 4
  • 98,0 x 120,0 mm
  • 3,620 L
  • Turbocharged
  • EU Stage IIIA
  • 63,0 kW - 84,5 HP | 2600 rpm
  • 296,0 Nm | 1600 rpm
  • Indirect
  • 699 x 537 x 794 mm
  • 261 kg

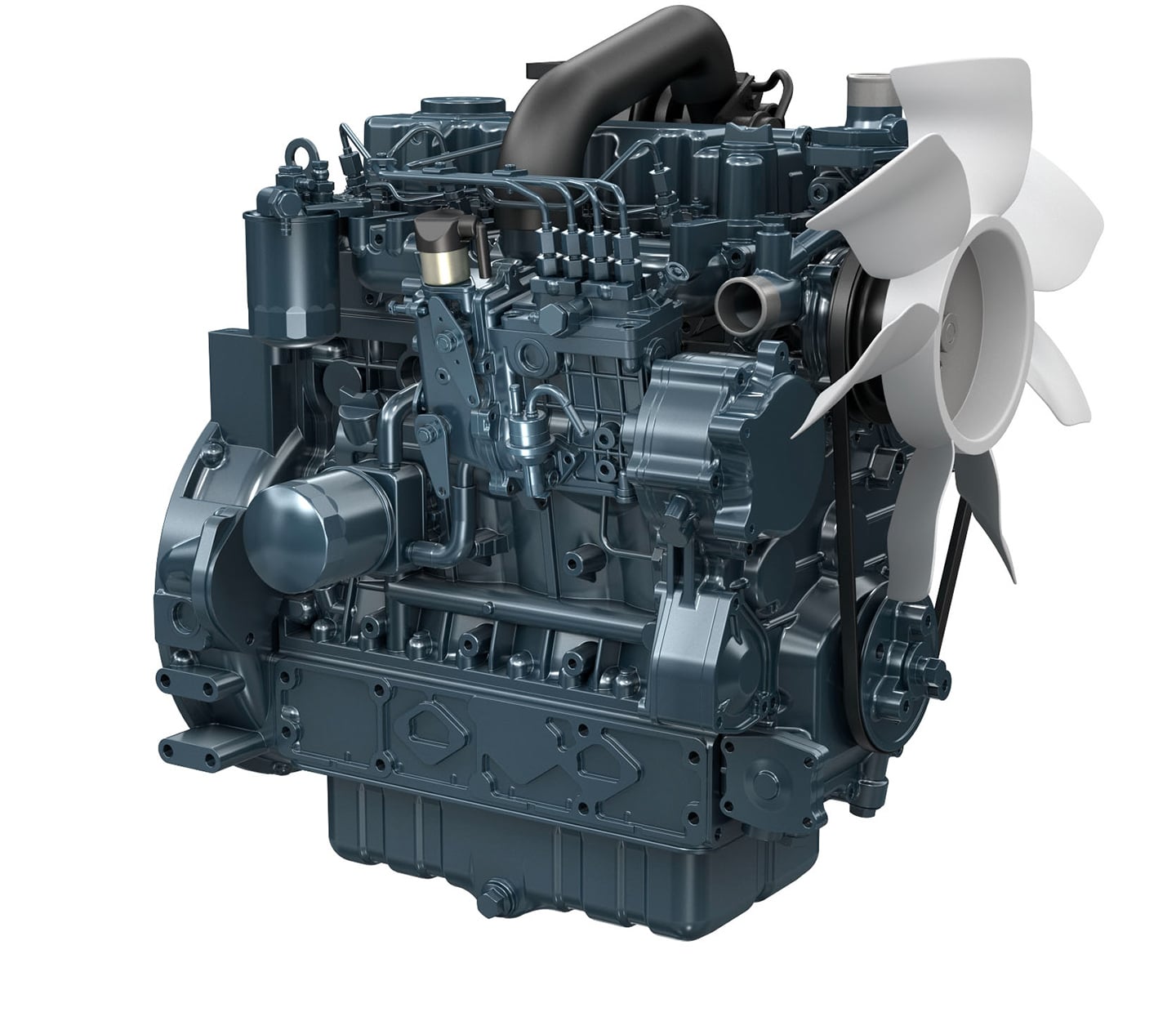

Kubota V3600-T-E3

*: SAE J1995 gross intermittent
**: Dimensions do not include fan and exhaust treatment unit.

The listed engine specifications are subject to change without notice, engine dimensions and weight are listed in accordance with Kubota's standard specification. The engine series can be produced in different options so the stated specifications may deviate. The photos shown may contain non-standard equipment.

Features and benefits

The Kubota V3600 engine is a high power density engine with the same footprint as the V3300 engine, as well as larger displacement.

Emissions

Kubota’s original E-TVCS (Three Vortex Combustion System) has been improved. The airflow, combustion chamber, and piston recess have been optimized. Suits European emission regulative: Kubota Stage 3A logo

Accessories

Fan positions are available at two heights to enable various equipment configurations.

Dimensions

Kubota V3600-T-E3 dimensions

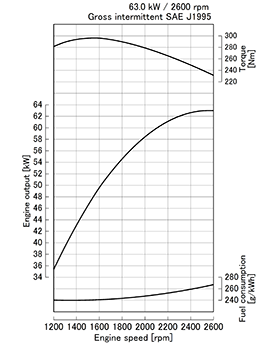

Performance curves

Kubota V3600-T-E3 performance curves
