Kubota logotip

Engine V1505-E4

Fuel efficent
EU Stage V
Easy maintenance
  • Model:
  • Type:
  • Cylinders:
  • Bore and stroke:
  • Displacement:
  • Aspiration:
  • Emissions:
  • Rated output:*
  • Maximum torque:*
  • System
  • Dimensions:**
  • Weight:
  • V1505-E4
  • Vertical, water cooled
  • 4
  • 78,0 x 78,4 mm
  • 1,498 L
  • Naturally aspirated
  • EU Stage V
  • 18,5 kW - 24,8 HP | 2300 rpm
  • 92,6 Nm | 1700 rpm
  • Indirect
  • 565 x 396 x 607 mm
  • 110 kg

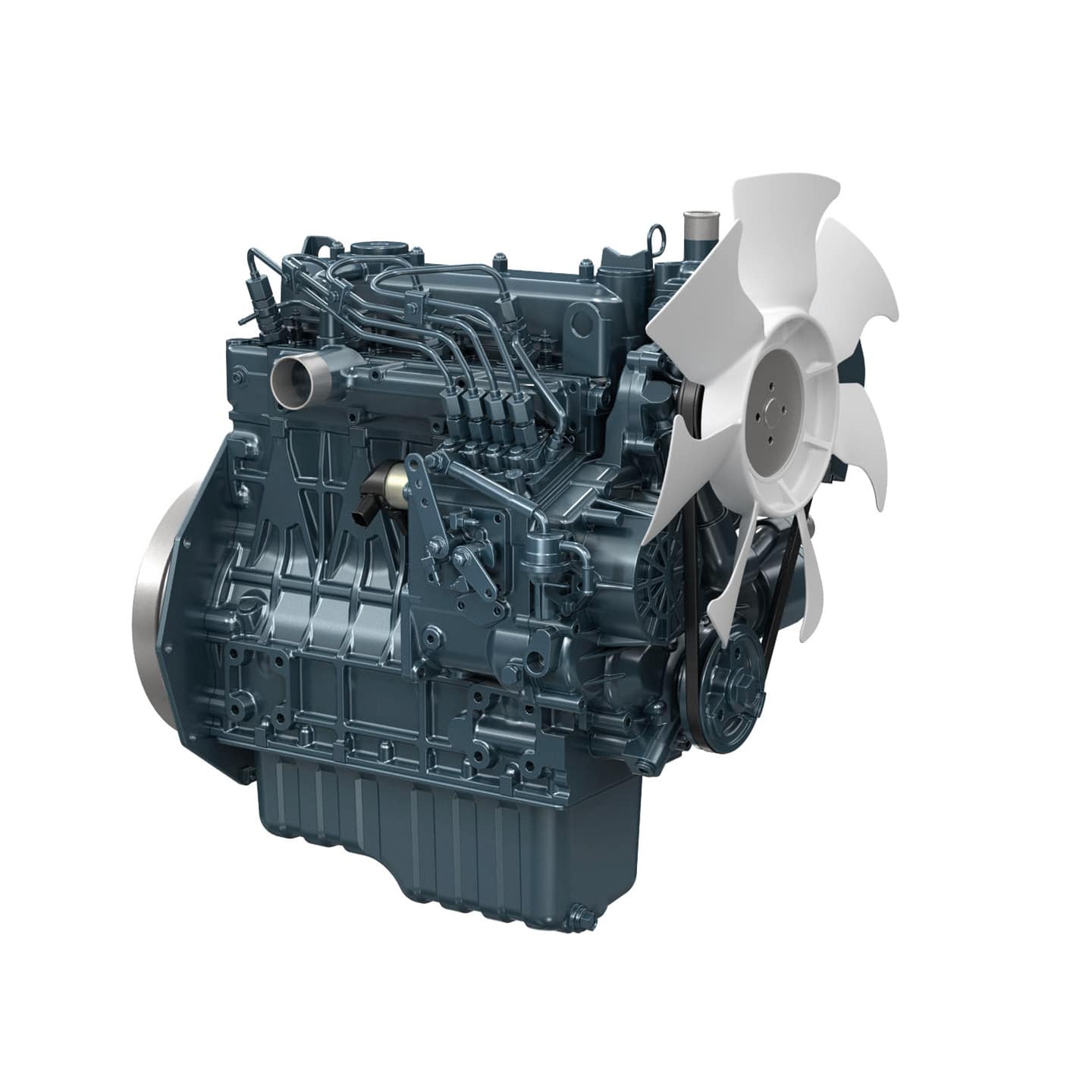

Kubota V1505-E4

*: SAE J1995 gross intermittent
**: Dimensions do not include fan and exhaust treatment unit.

The listed engine specifications are subject to change without notice, engine dimensions and weight are listed in accordance with Kubota's standard specification. The engine series can be produced in different options so the stated specifications may deviate. The photos shown may contain non-standard equipment.

Features and benefits

The V1505-E4 engine is a compact multi-cylinder water-cooled industrial diesel engine that complies with the EU Stage V emission class. This series of motors has proven to be an excellent choice in this power class to drive a variety of small to medium applications ranging from 18.5 kW to 33 kW.

Emissions

The developed original E-TVCS (Three Vortex Combustion System) has been improved. The airflow, combustion chamber, and piston recess have been optimized to provide low particulate matter (PM) levels, matching the stringent level of emission regulation. The Kubota V1505-E4 allows a smooth transition from E3 to E4 emission class without physical changes to the engine itself. Complies with European regulations on the level of exhaust particles: Kubota Stage V logo

Dimensions

Kubota V1505-E4 dimensions

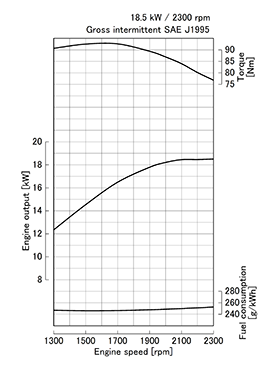

Performance curves

Kubota V1505-E4 performance curves
