Engine V1305-E2

Fuel efficent
EU Stage IIIA
Easy maintenance
  • Model:
  • Type:
  • Cylinders:
  • Bore and stroke:
  • Displacement:
  • Aspiration:
  • Emissions:
  • Rated output:*
  • Maximum torque:*
  • System
  • Dimensions:**
  • Weight:
  • V1305-E2
  • Vertical, water cooled
  • 4
  • 76,0 x 73,6 mm
  • 1,335 L
  • Naturally aspirated
  • EU Stage IIIA
  • 27,2 kW - 36,5 HP | 3600 rpm
  • 81,6 Nm | 2600 rpm
  • Indirect
  • 565 x 396 x 607 mm
  • 110 kg
Kubota V1305-E2

*: SAE J1995 gross intermittent
**: Dimensions do not include fan and exhaust treatment unit.

The listed engine specifications are subject to change without notice, engine dimensions and weight are listed in accordance with Kubota's standard specification. The engine series can be produced in different options so the stated specifications may deviate. The photos shown may contain non-standard equipment.

Features and benefits

The V1305-E2 engine is a compact multi-cylinder water-cooled industrial diesel engine that meets the CARB Tier 2 + EU Stage IIIA level emission class. This series of engines has proven to be an excellent choice in this power class to drive a variety of small to medium applications ranging from 18.5 kW to 33 kW.
It is also possible to configure the V1305-E2 motor with 3000 rpm which has an output power:
23,0 kW - 30,8 HP | 3000 rpm in 82,7 Nm | 2200 rpm.

Dimensions

Kubota V1305-E4 dimensions

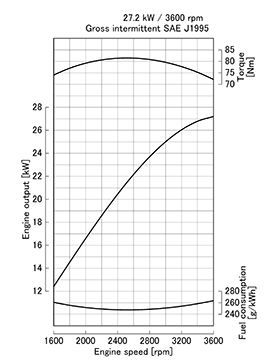

Performance curves

Kubota V1305-E4 Performance curves
