Oil cooled

EU Stage V

Easy maintenance

Model:
Type:
Cylinders:
Bore and stroke:
Displacement:
Aspiration:
Emissions:
Rated output:*
Maximum torque:*
System
Fuel quantity:
Oil quantity:
Dimensions:
Weight:

OC95-E4
Vertical, oil cooled
1
83,0 x 77,0 mm
0,416 L
Naturally aspirated
EU Stage V
7,0 kW - 9,4 HP | 3600 rpm
21,6 Nm | 2300 rpm
Indirect
5,5 l
1,7 l
451 x 503 x 501 mm
56 kg

*: SAE J1349 net intermittent, Three Vortex Combustion System(TVCS)

Specification is subject to change without notice. Dry weight is according to Kubota's standard specification. When specification varies, the weight will vary accordingly.

The OC95 engine is unique in a series of oil-cooled engines with low weight and compact dimensions. In addition to its physical properties, it also boasts a low noise level, durability and a clean exhaust which complies with the strictest world regulations. The special design of the Kubota ACTV allows the engine block to be air-cooled and the combustion chambers to be cooled by engine oil.

Emissions

Kubotin motor OC95-E4 engine enables a smooth transition from E2 to E4 emission class without physical changes to the engine itself and power and torque characteristics. Complies with European regulations on the level of exhaust particles:

Dimensions

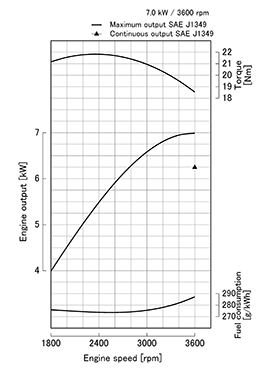

Performance curves
