Kubota logo

Engine EA330-E4

Fuel efficent
EU Stage V
Easy maintenance
  • Model:
  • Type:
  • Cylinders:
  • Bore and stroke:
  • Displacement:
  • Aspiration:
  • Emissions:
  • Rated output:*
  • Maximum torque:*
  • System
  • Fuel quantity:
  • Oil quantity:
  • Dimensions:
  • Weight:
  • EA330-E4
  • Horizontal, water cooled
  • 1
  • 77,0 x 70,0 mm
  • 0,325 L
  • Naturally aspirated
  • EU Stage V
  • 5,15 kW - 6,91 HP | 3000 rpm
  • 17,65 Nm | 2000 rpm
  • Indirect
  • 4,8 l
  • 1,3 l
  • 312 x 566 x 457 mm
  • 54 kg
Kubota EA330-E4

*: SAE J1349 net intermittent

Specification is subject to change without notice. Dry weight is according to Kubota's standard specification. When specification varies, the weight will vary accordingly.

Features and benefits

The EA330 engine is unique in a series of oil-cooled engines with low weight and compact dimensions. In addition to its physical properties, it also boasts a low noise level, durability and a clean exhaust which complies with the strictest world regulations. The special design of the Kubota ACTV allows the engine block to be air-cooled and the combustion chambers to be cooled by engine oil.

Emisije

Kubota EA330-E4 allows a smooth transition from E2 to E4 emission class without physical changes on the engine itself and power and torque characteristics. Complies with European regulations on the level of exhaust particles: Kubota Stage V logo

Dimensions

Kubota EA330-E4 dimensions

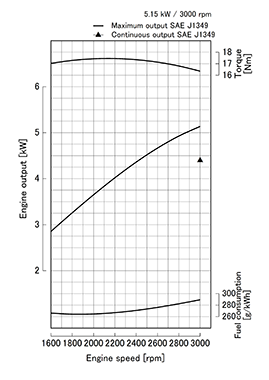

Performance curves

Kubota EA330-E4 performance curves
