Kubota logo

Engine WG1605-GL-E3

Fuel efficient
Carb Tier 3
Easy maintenance
  • Model:
  • Type:
  • Cylinders:
  • Bore and stroke:
  • Displacement:
  • Aspiration:
  • Aftertreatment:
  • Emissions:
  • Rated output:*
  • Maximum torque:*
  • Dimensions:**
  • Weight:
  • WG1605-G-E3
  • Vertical, water cooled
  • 4
  • 79,0 x 78,4 mm
  • 1,537 L
  • Naturally aspirated
  • Three-way catalyst
  • EPA Tier 2 / CARB tier 3
  • 42,5 kW - 57,0 HP | 3600 rpm
  • 120,0 Nm | 2400 rpm
  • 566 x 459 x 692 mm
  • 122 kg
Kubota WG1605-GL

*: SAE J1995 gross intermittent
**: Dimensions do not include fan and exhaust treatment unit.
LPG - Liquid Petrol Gas: Commercial liquid propane gas only. Equivalent to propane HD-5 of GPA standard.

The listed engine specifications are subject to change without notice, engine dimensions and weight are listed in accordance with Kubota's standard specification. The engine series can be produced in different options so the stated specifications may deviate. The photos shown may contain non-standard equipment.

Features and benefits

The installation compatibility that exists between Spark-Ignition engines (SI) and Compression-Ignition engines (CI) is convenient for customers who need fuel flexibility for their products. The Kubota WG1605 includes gasoline, LPG, and natural gas versions, as well as dual and multiple fuel versions. Options include gasoline and LPG, LPG and natural gas, and gasoline, LPG and natural gas.

Emissions

WG1605-E3 engine has been designed to comply with EPA Tier 2 / CARB Tier 3.

dimensions

Kubota W1605-GL dimensions

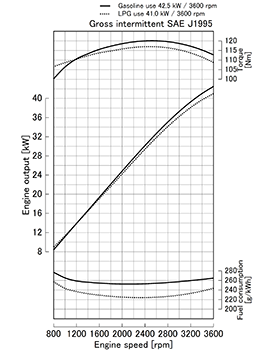

performance curves

Kubota WG1605-GL Performance curves
